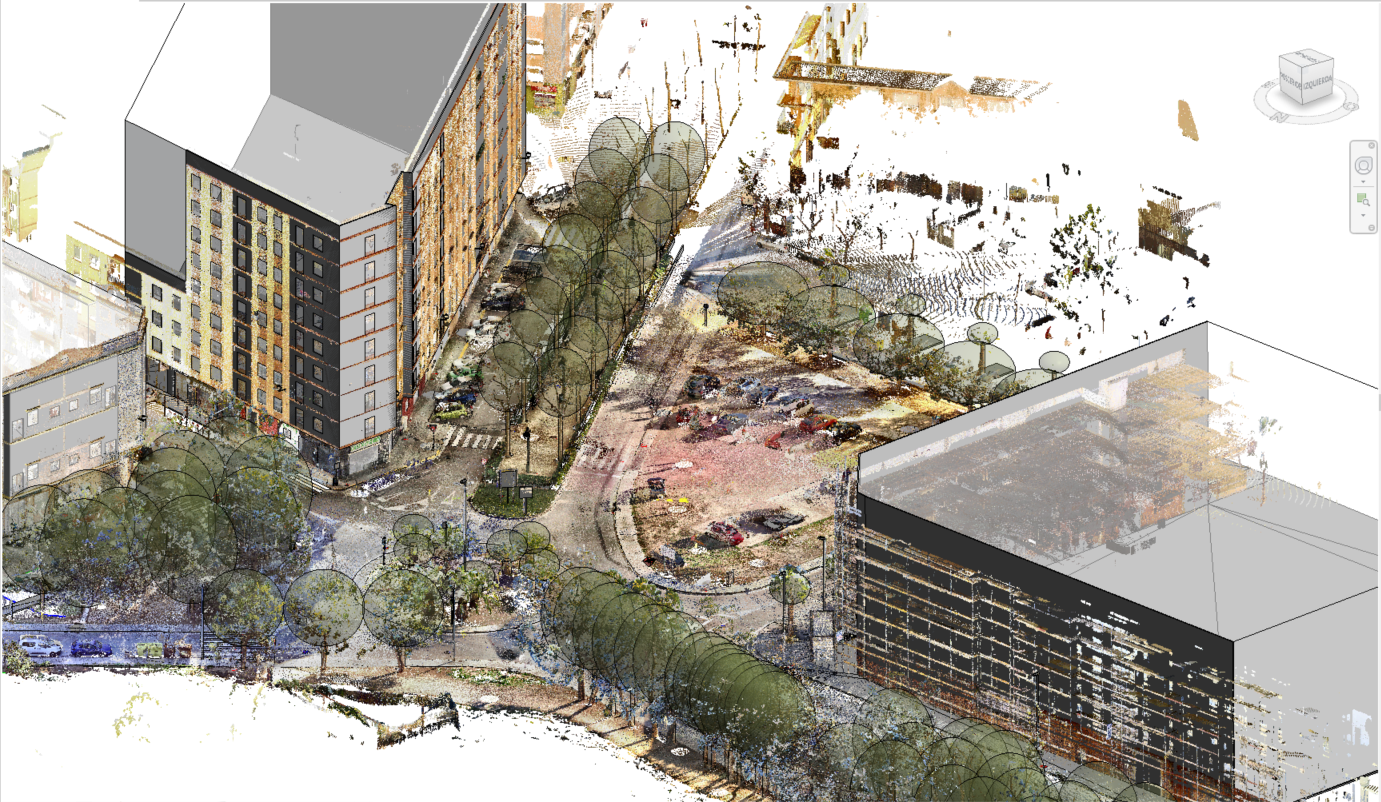

At Nova Cartografía we carry out BIM projects for architecture and engineering. We rely on the latest technology in laser scanner instruments to take data on the current state of topography and the different disciplines of civil infrastructure. In this way we obtain a point cloud of all surfaces, from which we obtain 3D BIM models.

Personal, instrumental and software

The most efficient way to generate a 3D BIM model of the current state of the infrastructure is with laser scanning instruments. Nova Cartografía has its own instruments and the necessary software so that our specialized technicians obtain the best results as soon as possible.

Planning and design

With the implementation of BIM projects, design and construction teams can execute their work much more efficiently and capture the data produced through this process.



Operations and construction

The production team shares information and works collaboratively at all stages of the project to ensure efficiency and optimal work timelines.

Multiple functionalities

With the methodology that allows collaborative work, a large task of conservation, rehabilitation and maintenance of facilities and architectural complexes is carried out in an optimized way.

Production control

An internal process of continuous improvement is that of monitoring and control in which the progress of the project is tracked, reviewed and regulated. It is a key indicator of achievement to identify areas where changes or improvements are required and to generate reports of the time consumed that will serve as an estimate at the conclusion of the project.

Project development

From the beginning of the project, the definition of the deliverables is developed: these baselines will be used to track and regulate progress and performance in order to identify the areas in which changes to be specified are required.

The team responsible for BIM during the work will update it with the definitions of the awarded suppliers, the status of the elements already executed will also be updated against those that are not and those executed in that time will be categorized.

Times

The traceability of projects allows you to obtain the total time dedicated to the design to know the production capacity and the real performance of each activity.

The use of BIM is a differentiating point in the bidding phase of works. BIM contributes to the creation of smarter spaces with greater adaptability.

Large advances

BIM is an advantage for operations and maintenance activities, incorporating intelligence and efficiency into processes.  The efficiency of its processes contributes to the improvement of the connection of teams and work in the cloud at each stage of the project. To find out more, do not hesitate to contact our team, our professionals will be happy to assist you.
